HiScope
Availability: | |
---|---|
Quantity: | |
| Features
Professional endoscope image workstation to recall medical data truly and accurately
Medical record management system to support report printing
Image processor with 21.5-inch touch screen medical grade monitor
High-definition CMOS technology with 720P or 1080P resolution for better viewing
Ergonomic endoscope handle with multi-function buttons and 4-way angulation
High brightness, high contrast and wide viewing angle
High brightness LED light source with good color restoration and long operation life
9-level brightness adjustment for a variety of scenes
All-in-one light source and air/water pump greatly save operation space
Four-direction bending and larger angulation make it easier to observation
Φ2.2-3.2mm working channel is compatible with various endoscopic instruments.
Wider view angle of 140° offers more excellent and detailed images
detail
detail
Wider clinical applications for gastroscopy, colonoscopy and bronchoscopy in companion animals like dogs and cats, and for gastroscopy, colonoscopy, bronchoscopy, esophagoscopy, hysteroscopy, rhinoscopy, pharynogoscopy and laryngoscopy in large animals like horses and cattle.
| Specifications
Model | Outer Diameter | Working Channel | Working Length | View Angle | View Depth | Bending Range | Resolution |
HiScope 60 | 6.8mm | 2.2mm | 1500mm | 120° | 3-100mm | 210°(U), 130°(D) 100°(R), 100°(L) | HD 720P (1M pixels) |
HiScope 70 | 7.8mm | 2.8mm | 1500mm | 120° | 3-100mm | 180°(U), 130°(D) 100°(R), 100°(L) | HD 720P (1M pixels) |
HiScope 70F | 7.8mm | 2.2mm | 1500mm | 140° | 3-100mm | 180°(U), 130°(D) 100°(R), 100°(L) | FHD 1080P (2M pixels) |
HiScope 90F | 9.2mm | 2.8mm | 1500mm | 140° | 3-100mm | 180°(U), 130°(D) 100°(R), 100°(L) | FHD 1080P (2M pixels) |
HiScope 300F | 9.2mm | 2.8mm | 3000mm | 140° | 3-100mm | 180°(U), 130°(D) 100°(R), 100°(L) | FHD 1080P (2M pixels) |
HiScope 350F | 11.5mm | 3.2mm | 3500mm | 140° | 3-100mm | 180°(U), 130°(D) 160°(R), 160°(L) | FHD 1080P (2M pixels) |

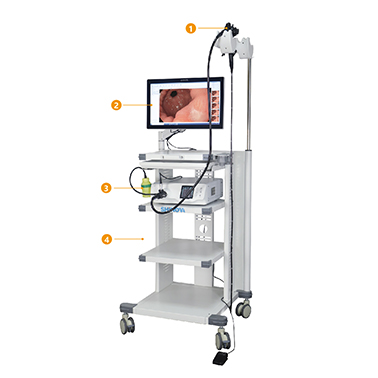

| Standard Configuration
(1)Endoscope and accessories
(2)21.5-inch Image Processor (with endoscope image workstation)
(3)Light Source (with air/water pump)
(4)Endoscope Trolley.
| Optional configuration
(1)Disposable grasping forceps
(2)Disposable biopsy forceps
(3)Disposable spray catheter
(4)Disposable electric snare
(5)Disposable electric snare
(6)Disposable stone basket
| Video Show
Installation&Operation Video
| About Us
SHINOVA, a well-known animal health brand in the world.
SHINOVA, based in Shanghai, is a professional veterinary equipment manufacturer and veterinary solutions provider primarily for animal hospitals and scientific research institutes.
For decades global operations, Shinova has dedicated itself to providing advanced veterinary techniques and medical solutions to tens of thousands of animal hospitals (including veterinary hospitals and equine hospitals) and veterinary schools (including veterinary teaching and animal experiments) in Europe, America, Australia, China, etc.
