| Features

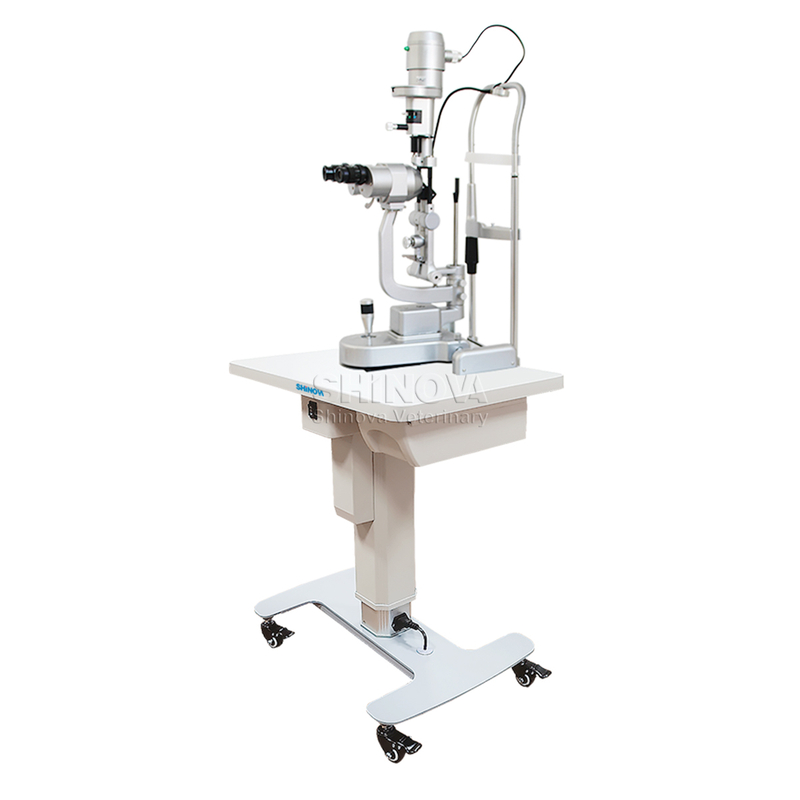

Classic slit lamp with three-step magnifications: 10×, 16×, 25×.
The slit can be inclined.
Excellent converging optical path provides a clearer image and a broader field of view.
The slit angle ranges from 0° to 180°, with adjustable slit inclinations.
The maximum aperture diameter is 14mm.
| Specifications
Microscope
Microscope type: converging stereo microscope
Eye piece: 10X, 16X
Magnification: 10X, 16X, 25X
Field of view: Ø23mm, Ø14mm, Ø9mm
Adjustable pupil distance: 55~75mm
Adjustable diopter: ±8D
Slit
Slit width: 0~14mm adjustable
Slit length: 1~14mm adjustable
Slit angle: 0~180°adjustable
Slit inclination: 5°, 10°, 15°, 20°
Aperture diameter: Ø0.2mm, Ø2mm, Ø3mm, Ø5mm, Ø8mm, Ø10mm, Ø14mm
Filter: Heat absorption, grey, red-free, cobalt blue
Illumination bulb: 12V/30W or 12V/50W halogen bulb
Power
Voltage/Frequency: AC 220V±10%/50Hz±10%
AC 110V±10%/60Hz±10%
Power: 80VA
Packing
Dimensions: 77×38×62cm
Gross weight: 24KG
Net weight: 21KG
| Optional configuration
Applanation tonometer
Electrical up-down table
