| Features
Automatic baseline adjustment for optimum printing
10 seconds preview
Cat & dog software package
7-Lead simultaneous acquisition
Operation modes: AUTO, AUTO2, MAN, and ANA
Filters: HUM, EMG, ADS
Power supply: AC, DC, Battery
Lead modes: Standard and Cabrera
Data storage: 12 ECG Files in main unit, 250 ECG Files to SD card
Compact & light weight
Lead off detection
Low battery indicator
| Specifications
Model | Safety Standard | Acquisition Mode | Input Circuit | A/D Converter | Time Constant | Frequency Response | Sensitivity | Input Impedance | Input Circuit Current | Calibration Voltage |
ECG-10AV
| IEC Class I,type CF | 7 lead acquisition simultaneously | Floating, protection against defibrillator and pacemaker | 12 bit | >3.2s | 0.05Hz ~ 165Hz | 2.5, 5, 10, 20, 40 (mm/mV±2%), Auto | ≥50MΩ | ≤50nA | 1mV±2% |
ECG-30AV
| ||||||||||
ECG-60LV
|
Model | Noise Level | Anti Baseline Drift | Filter | CMRR | Patient Current Leakage | Paper Speed | Recording Paper | Power Supply | Dimension |
ECG-10AV
| <15μVp-p | Automatic | EMG Filter: 25Hz~45Hz(-3dB) ADS Filter: Auto(0.15-0.50Hz) HUM Filter: 50Hz/60Hz (-20dB) | >100dB | <10μA | 6.25/12.5/25/50mm/s | 50mm(width), 20m/30m(length), roll | AC: 110/220V, 50/60Hz DC: 12V, built-in rechargeable battery | 295mmx260mmx60mm (Main unit of ECG-10AV)
415mmx195mmx380mm (Carton of ECG-10AV) |
ECG-30AV

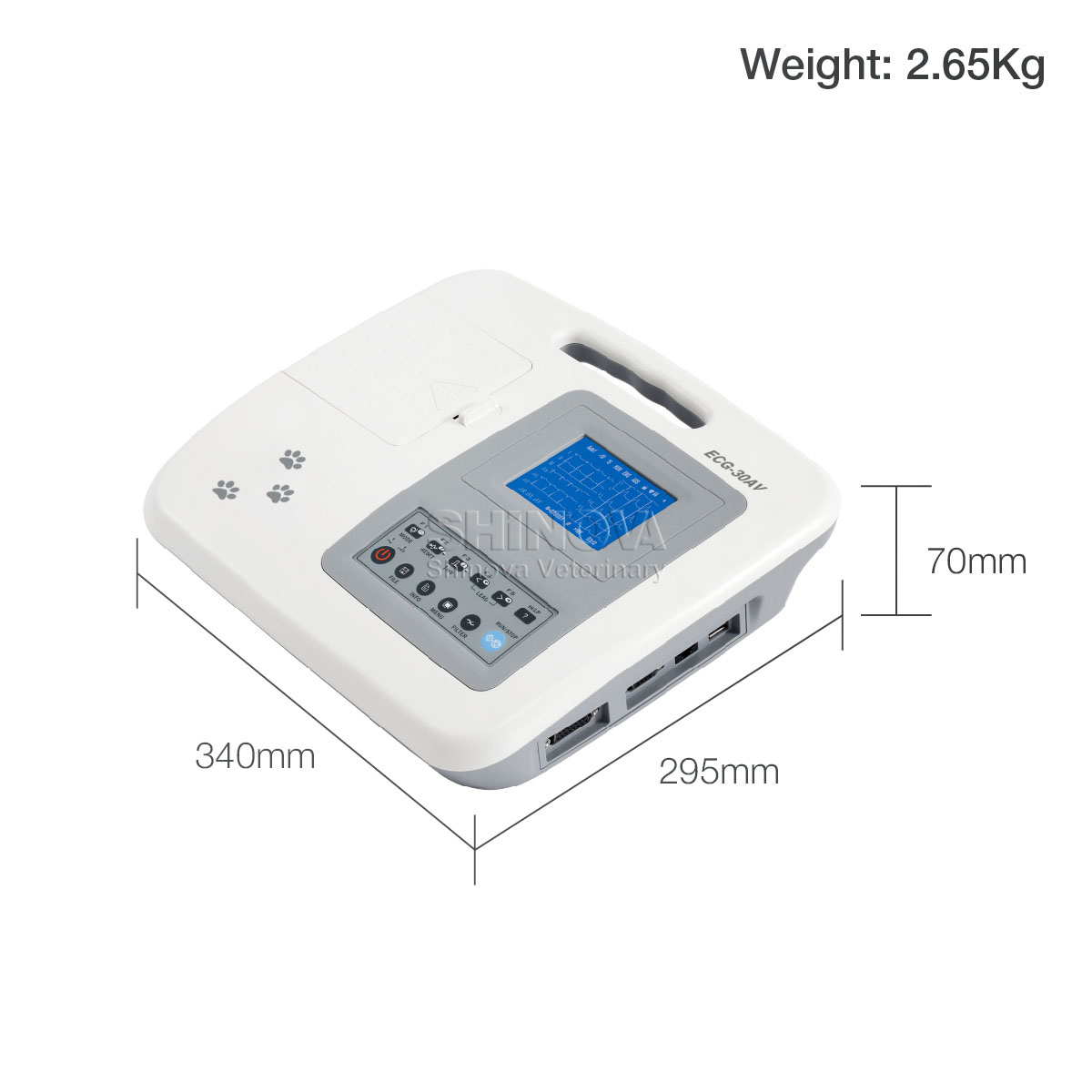

| 63mm(width), 20m/30m(length), roll | 345mmx300mmx80mm (Main unit of ECG-30AV)
415mmx195mmx380mm (Carton of ECG-30AV) | |||||||
ECG-60LV
| 112mm(width), 20m/30m(length), roll | 345mmx300mmx80mm (Main unit of ECG-60LV)
415mmx195mmx380mm (Carton of ECG-60LV)
|

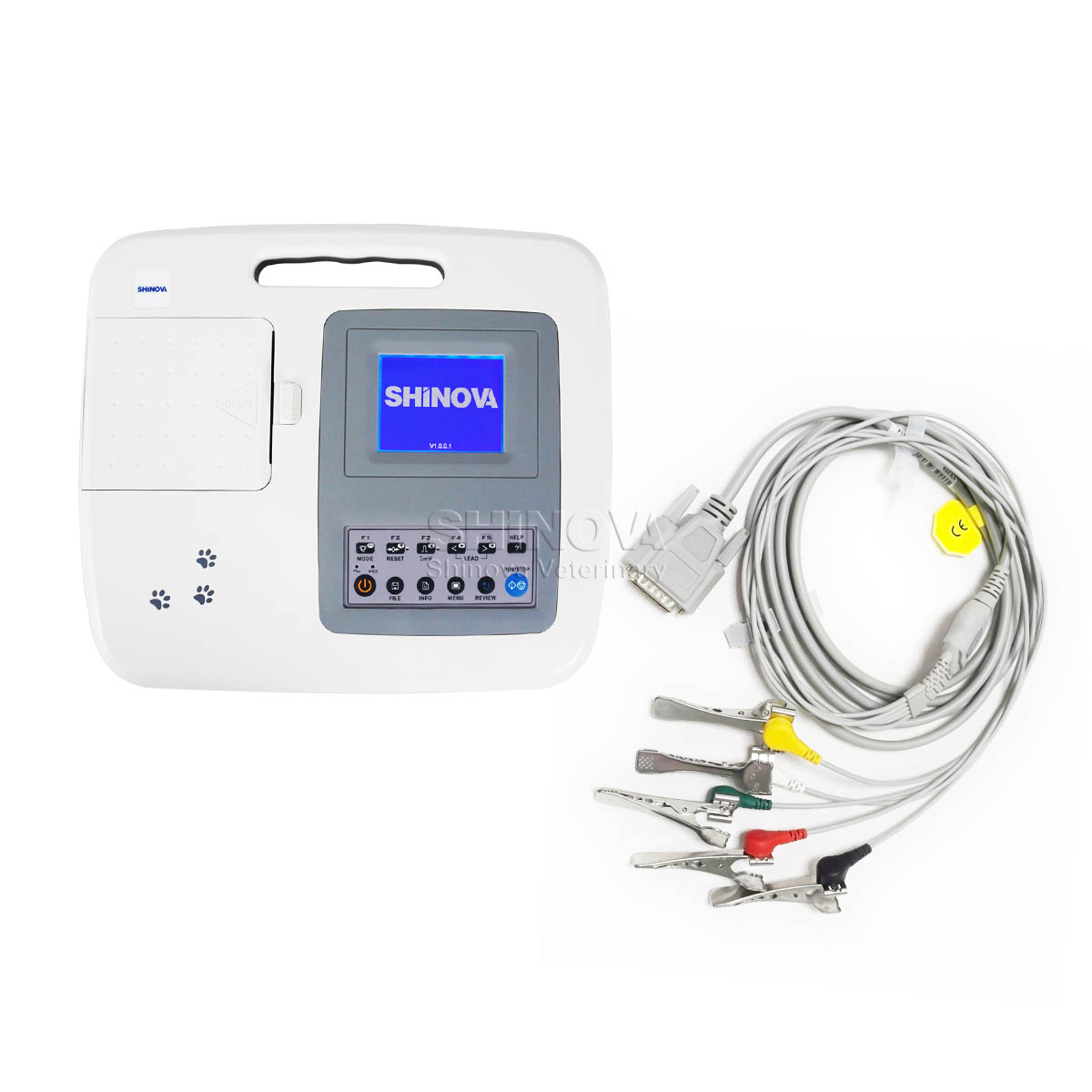

| Standard Configuration
ECG Main unit
ECG cable
veterinary electrodes (clip type)
Dust cover
Rechargeable battery
Thermal Paper
Paper roller
Screwdriver
| Optional configuration
ECG workstation
USB function board
SD card
Aluminum trolley
Carrying bag
ECG Function Sheet:
Model | Channel | Auto Measurement | Auto Analysis | LCD Size | Waveforms | Paper Width | Info | File | Help | RS232 | USB | SD Card |
ECG-10AV | 1-Channel | Yes | Yes | 3.8” | 7-ch | 50mm | Yes | Yes | Yes | Yes | Option | Option |
ECG-30AV | 3-Channel | Yes | Yes | 3.8” | 7-ch | 63mm | Yes | Yes | Yes | Yes | Option | Option |
ECG-60LV | 6-Channel | Yes | Yes | 6” | 7-ch | 112mm | Yes | Yes | Yes | Yes | Yes | Yes |
